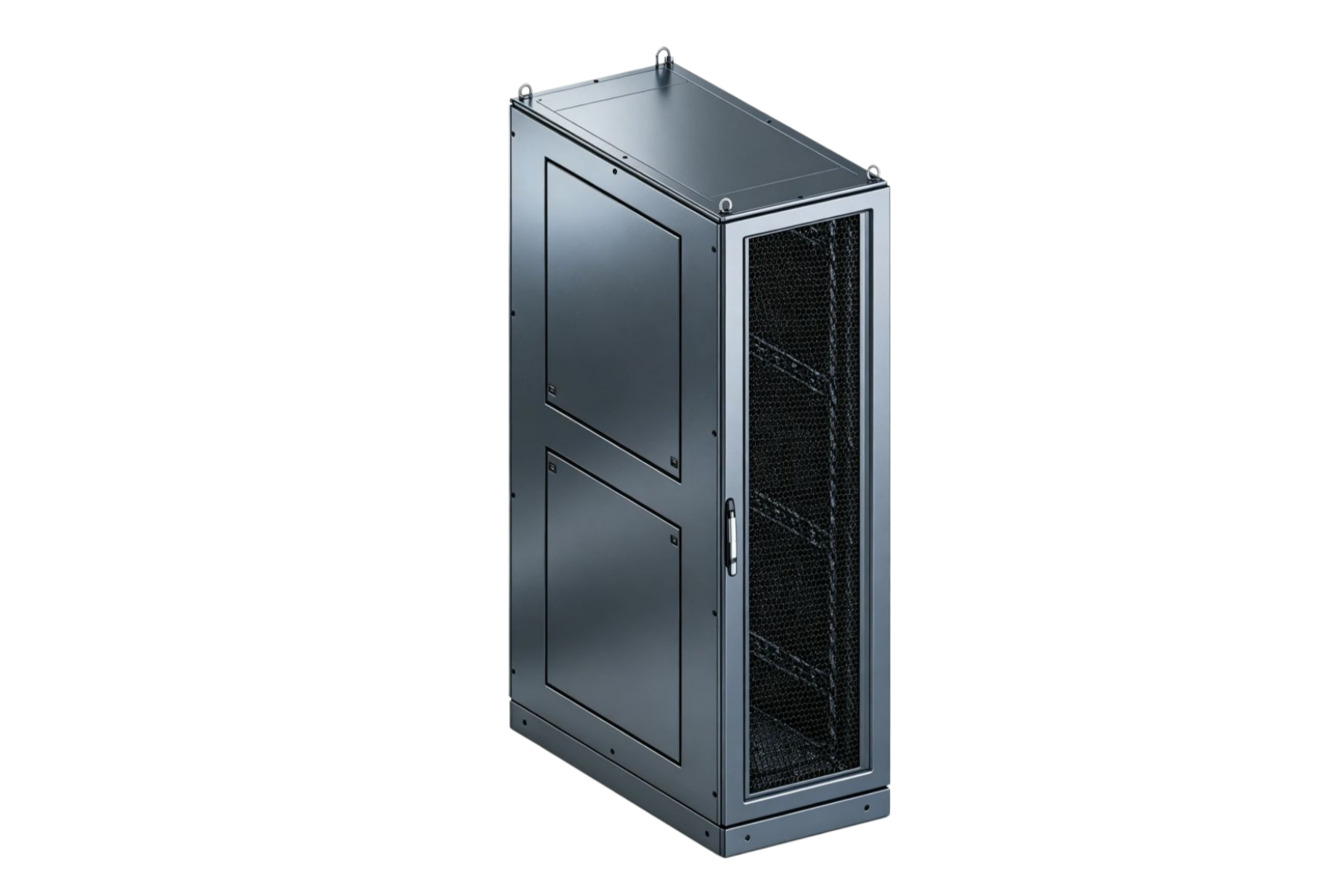

The MIX AIDC server rack is specifically designed for AIDC (AI Data Center) and high-density server applications. It features a modular structure that supports flat-pack shipping, allows unlimited expansion and side-by-side cabinet integration, and incorporates an optimized hot and cold aisle airflow management design to significantly enhance cooling efficiency and overall system reliability.

Core Advantages
l  Supports AIDC / AI / GPU high-density server deployment
l  Flat-pack design saves transportation and storage space
l  Unlimited expansion with side-by-side cabinet integration for flexible data center layouts
l  Modular design for simple operation and fast on-site assembly
l  Optimized hot and cold aisle design improves cooling efficiency and reduces energy consumption

Hot and Cold Aisle Airflow Management Design

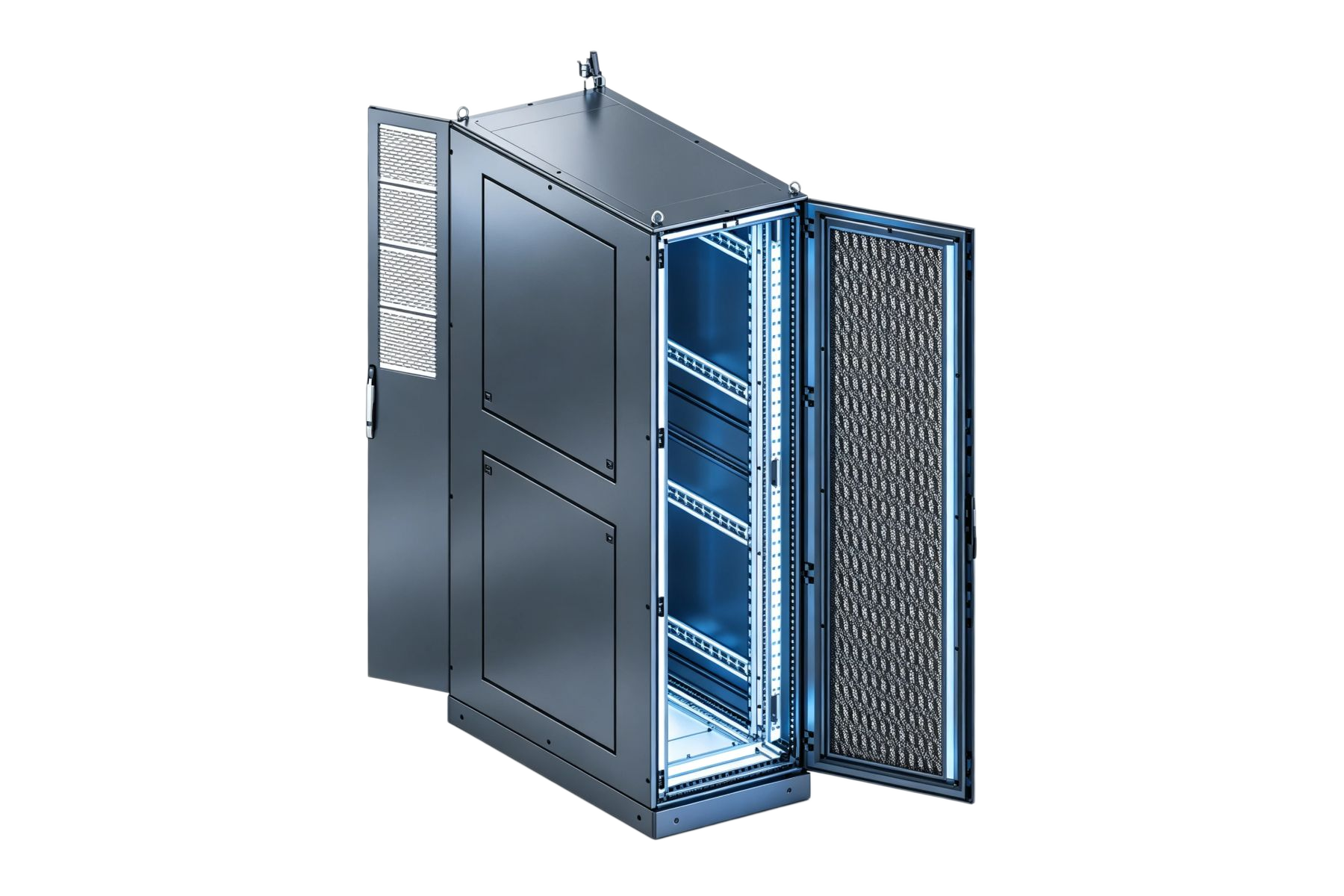

The MIX AIDC server cabinet utilizes a coordinated design of the front door, internal cable management system, and blanking panels to create a partially enclosed airflow channel within the cabinet. This effectively separates the cold air intake and hot air exhaust paths, preventing the mixing of hot and cold air.

Cold air enters from the front of the cabinet and is delivered directly to the server intake side. The heat generated during server operation is collected by the airflow containment system (including a plenum and fans) and is then forcibly exhausted from the rear of the cabinet into the hot aisle or the data center return air system.

This design significantly improves overall cooling efficiency and enhances the stability of server inlet temperatures.

1. Enclosure Structure and Safety Standards

IEC 62208
l  Empty enclosures for low-voltage switchgear and controlgear assemblies – General requirements
l  Compliance: The cabinet’s structural strength, doors, hinges, and locking mechanisms meet industrial-grade enclosure requirements, making it suitable for data centers and critical infrastructure environments

2. Protection Rating and Mechanical Strength

IEC 60529
l  Degrees of protection provided by enclosures (IP Code)
l  Compliance: The product can meet IP protection requirements depending on configuration. The overall cabinet protection level is rated at IP20

IEC 62262
l  Degrees of protection provided by enclosures against external mechanical impacts (IK Code)
l  Compliance: The cabinet structure provides sufficient impact resistance, suitable for high-density equipment installation, transportation, and maintenance environments.

3. Environmental Adaptability and Reliability

IEC 60068 Series (Environmental Testing)

IEC 60068-2-1: Cold Test

IEC 60068-2-2: Dry Heat Test

IEC 60068-2-14: Temperature Change Test

IEC 60068-2-30: Damp Heat, Cyclic Test
l  Compliance Statement: Verifies the structural stability and reliability of the cabinet under various temperature and humidity conditions.
l  Ensures suitability for continuous operation in AIDC data center environments.

4. Thermal Management and Airflow Design (Reference Standard)

ASHRAE TC 9.9
l  Thermal Guidelines and Environmental Recommendations for Data Centers (Referenced for Design)
l  Compliance Statement: The cabinet design follows hot aisle / cold aisle airflow management principles, helping to improve cooling efficiency, reduce the risk of hot and cold air mixing, and enhance overall energy efficiency.
l  (Note: ASHRAE guidelines are industry-recommended practices and are not mandatory certification standards.)

5. Material and Corrosion Protection Design

ISO 12944
l  Corrosion Protection System for Steel Structures
l  Compliance Statement: Cabinet surface treatment can be configured according to project environmental conditions, meeting the long-term operational requirements of indoor data center environments.
